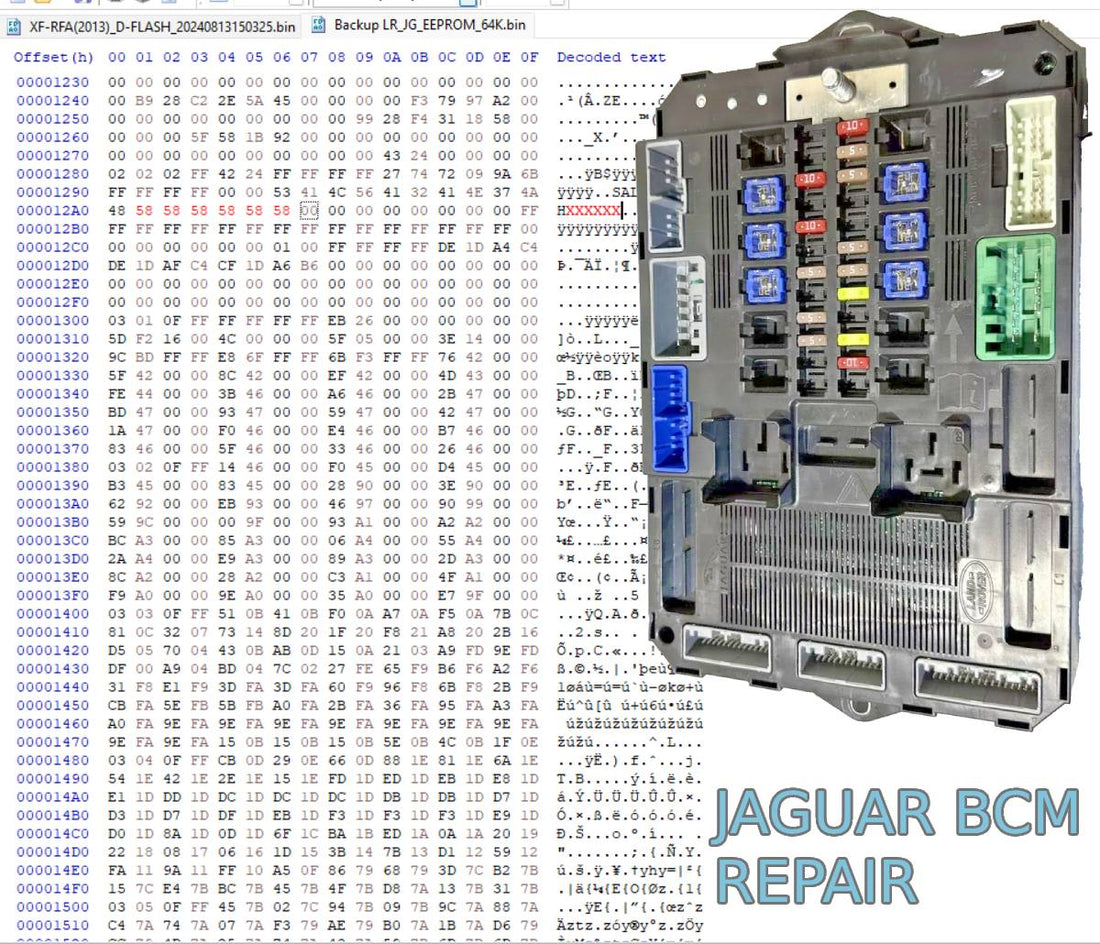

Jaguar X250 BCM Failures: Battery Voltage & Other Leading Causes, the Repair Path, and What’s Needed

Jaguar X250 BCM Failures: Battery Voltage & Other Leading Causes, the Repair Path, and What’s Needed

The Jaguar X250 (manufactured 2007-2015) has a sophisticated network of electronic control modules. Among these, the Body Control Module (BCM) plays a central role in many comfort, security, and lighting systems. Over time, the BCM is prone to faults. A significant number of these failures trace back to poor battery health or voltage irregularities. Below I explain the causes, how a repair is typically done, and what you’ll need to provide when sending in a BCM for refurbishment or fix.

---

Main Causes of BCM Failure in the X250

Here are the leading issues observed in the field, particularly where battery voltage or related electrical issues are involved:

Low or Unstable Battery Voltage

• If the main battery or auxiliary battery drops too low (for example, significantly below ~12.6 V at rest), the BCM can become corrupted.
• Weak batteries can lead to voltage droops during start-up or when loads are applied (lights, heaters, etc.), causing internal circuits in the BCM to operate outside their tolerances. Over time this stresses components.

Battery Disconnection or Replacement Without Proper Voltage Support

• Even routine battery replacement can “shock” the BCM (loss of power/voltage) and lead to lost settings, misrecognised keys (smart key not found), or failure of central locking etc.
• When the vehicle battery is disconnected, especially with no stable power source during the operation (for example, when programming or coding), the BCM firmware or internal memory can be corrupted.

Voltage Spikes and Poor Electrical Grounding

• Faults in the electrical system (e.g. bad ground connections, poor harness integrity, intermittent shorts) can allow spikes or surges which damage internal components.
• The BCM has self-protection and “solid-state driver protection” features; if repeated short circuits occur, outputs can become disabled to protect module hardware.

Component Aging / Overstress

• Capacitors, solder joints, and other internal parts degrade with time and thermal cycling; stress from irregular voltages accelerates failure.
• Auxiliary batteries that do not hold charge (for example sitting at very low voltage long term) allow for cumulative damage.

Environmental & Wiring Issues

• Moisture, corrosion, and wiring wear (e.g. in connectors) create resistance, reduce voltage, or cause intermittent contacts. All of which increase strain on the BCM.
• Physical damage or harness damage (e.g. from rodents, vibration) exacerbates the issues. While these are not always battery-voltage issues directly, they often worsen voltage stability or introduce spikes.

---

Symptoms You Might See

When the BCM is affected by the causes above, likely symptoms include:

• Central locking failure (remote fob stops working, locks don’t respond)
• “Smart key not found” or immobilisation warnings on the dash after battery change or disconnects
• Multiple electrical items failing: lights, wash/wipe systems, windows, mirrors, etc.
• Intermittent or total electrical faults (some parts working sometimes)
• Error codes relating to BCM communication, or driver protection states (solid-state protection) being activated.

---

Repair / Refurbishment Process

Fixing a BCM typically involves a number of steps, some hardware, some software. The general process is:

Initial Diagnostic / Bench Testing

• Confirm that the reported faults correspond to BCM failure, and check battery voltages under different conditions.
• Test inputs and outputs; check if any outputs have entered protection mode (e.g. solid-state driver protection).

Power Supply and Voltage Repair / Stabilisation

• Replace any failing components related to power input (voltage regulators, protection diodes, etc.).
• Repair or replace auxiliary battery if it is weak or not holding charge.
• Repair wiring or connectors if corrosion / damage present.

Firmware / Programming Checks

• Check whether the BCM firmware or settings have been corrupted. If so, reflash or restore from backup / original configuration.
• Ensure that the vehicle’s VIN, keys, immobiliser data are intact or correctly re-inserted.

Component-Level Repairs

• Replace failed internal components (capacitors, solid state drivers, etc.).
• Fix any damaged connectors or internal wiring.

Final Testing

• With a good stable battery or power source, test the module under load.
• Ensure all functions (locking, smart key, lights, wash/wipe etc.) work.
• Clear error codes, then retest in-vehicle to ensure no residual faults.

---

What You’ll Need to Send / Provide

To ensure the repair proceeds smoothly, these are the things that need to be included or known when you send in a BCM:

---

Prevention & Best Practices

To avoid BCM failure, or delay it:

• Maintain battery health: ensure both main and auxiliary batteries are healthy and charged. Test regularly.
• When replacing battery or disconnecting, use a stable power source or follow manufacturer procedures to preserve BCM memory or avoid corruption.
• Disconnect battery using Jaguar's battery disconnection procedure.
• Ensure all grounds and battery connections are clean, secure, corrosion-free.
• Inspect wiring and connectors for damage, especially those leading to or from the BCM.
• Keep error codes under check; sometimes small warning signs precede module failure.

---

Final Thoughts

BCM failure in the Jaguar X250 is often not a simple matter of “the module is dead.” Many failures stem from poor battery conditions—low voltage, unstable supply, or auxiliary battery issues. The good news is that professional repair (versus outright replacement) is viable if the module Hardware hasn’t suffered irreparable damage. Early detection—especially around battery health—goes a long way toward avoiding more severe issues.
